Geometry

Let’s get back to my backrooms! So the goal is to create a feeling of impossible geometry there. I decided to stick to the shape of the square for my bounding box and move walls while user doesn’t see it, making user go in circles (hopefully) without realising it.

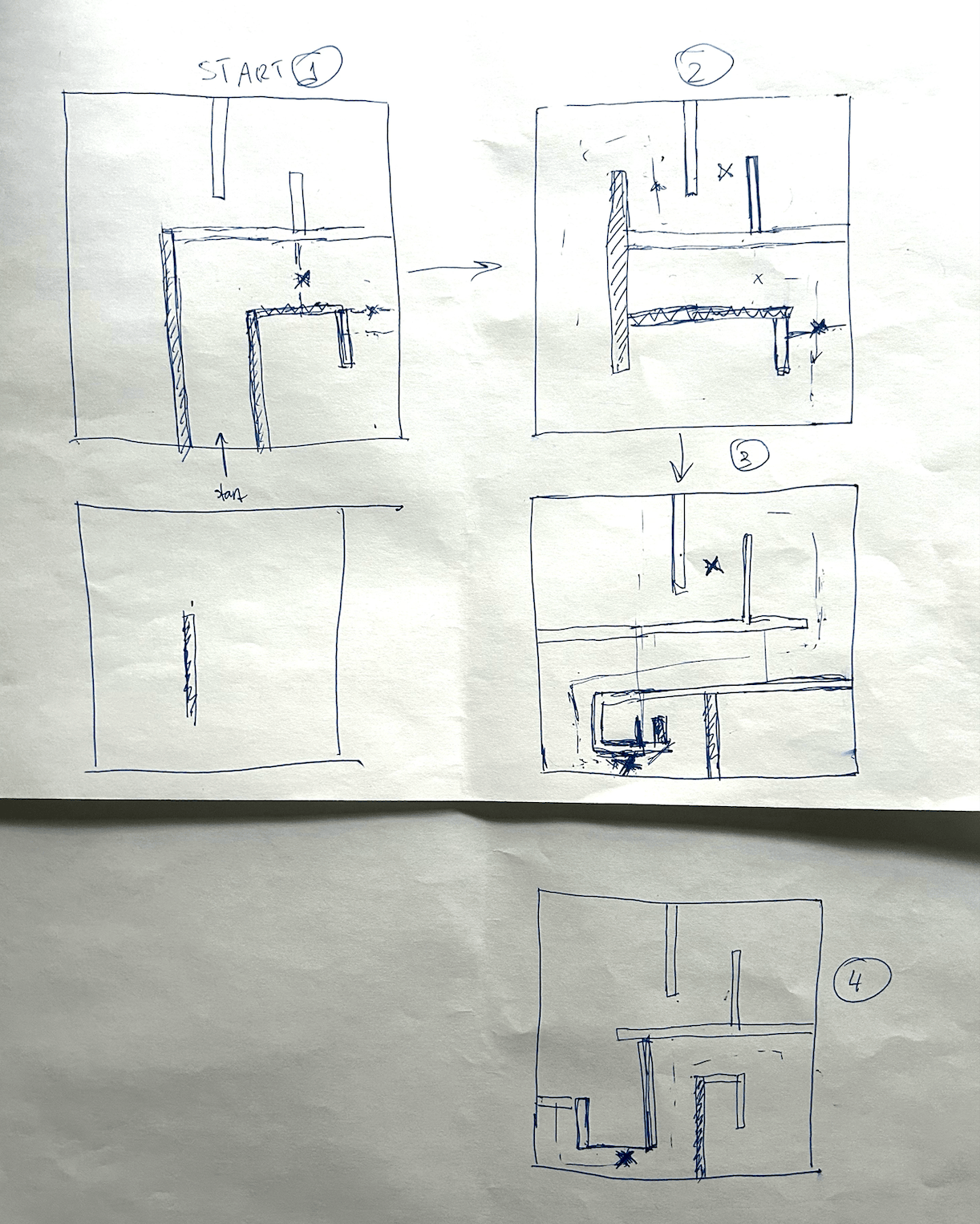

First, I sketched out possible layout and places where I would change the setup:

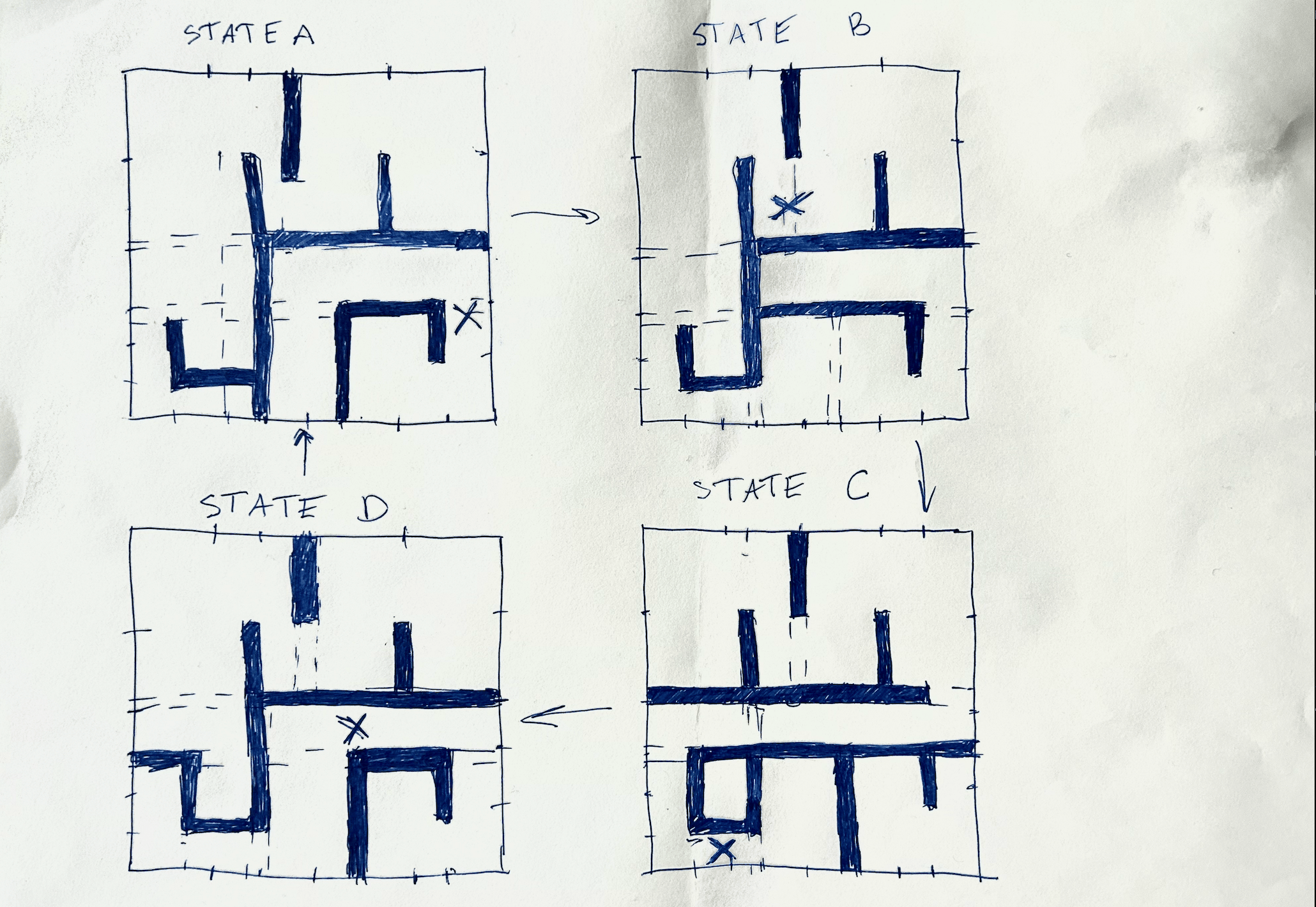

Then, I really thought through what layout should always be there and what should be rendered conditionally to avoid extra re-renders:

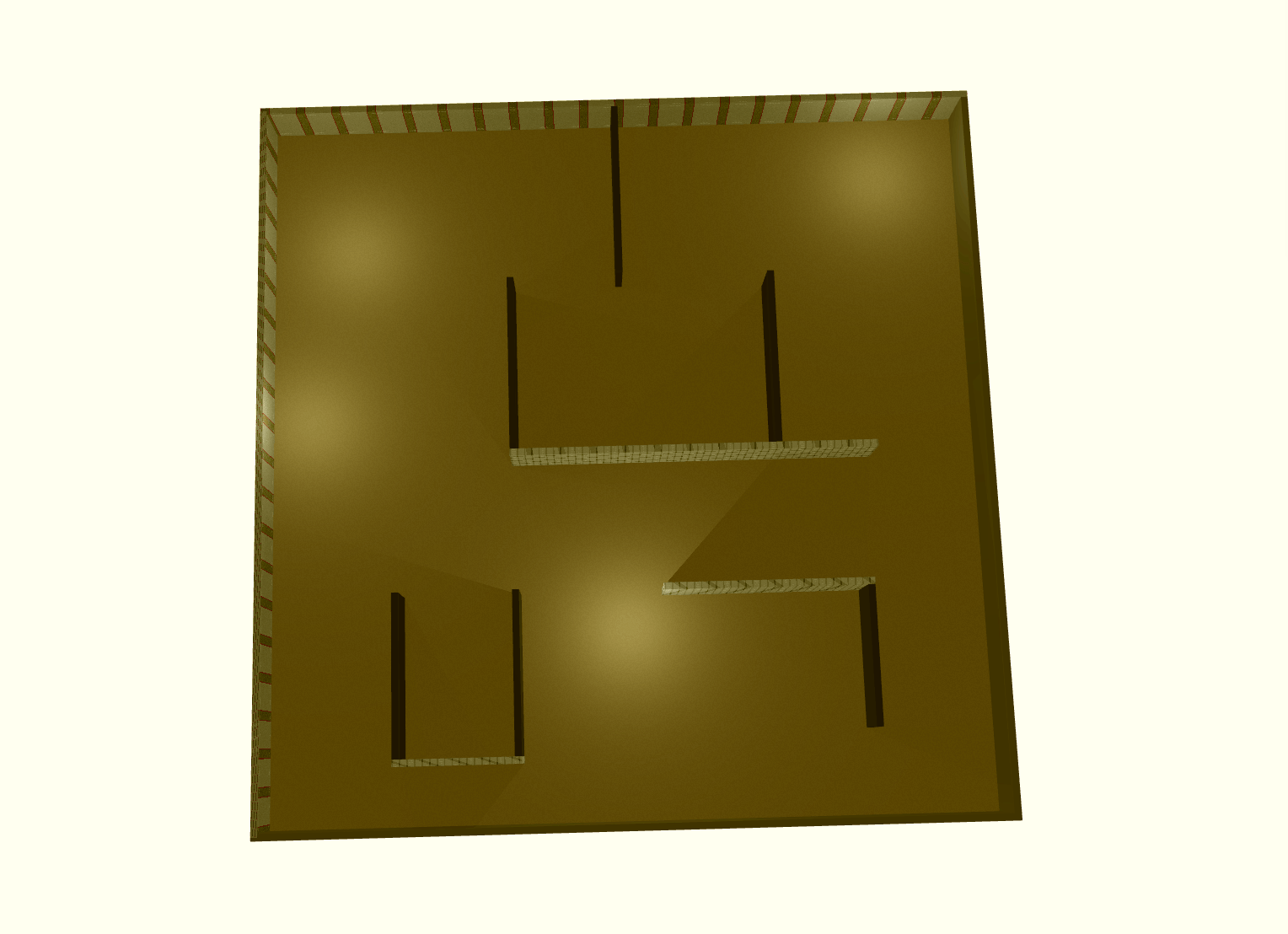

Then I have built this setup in react, and I will put my “moving” walls in the separate component, because these walls don’t have to re-render.

I am putting my <MovingWalls /> on the same level with the <Player/> and <Corridor/>, and I will use an updated state of the position from <Player/> to show or hide some of the walls:

        <Physics debug={ false }>
            <Lights />
            <Corridor />
            <MovingWalls />
            <Player  />
        </Physics>

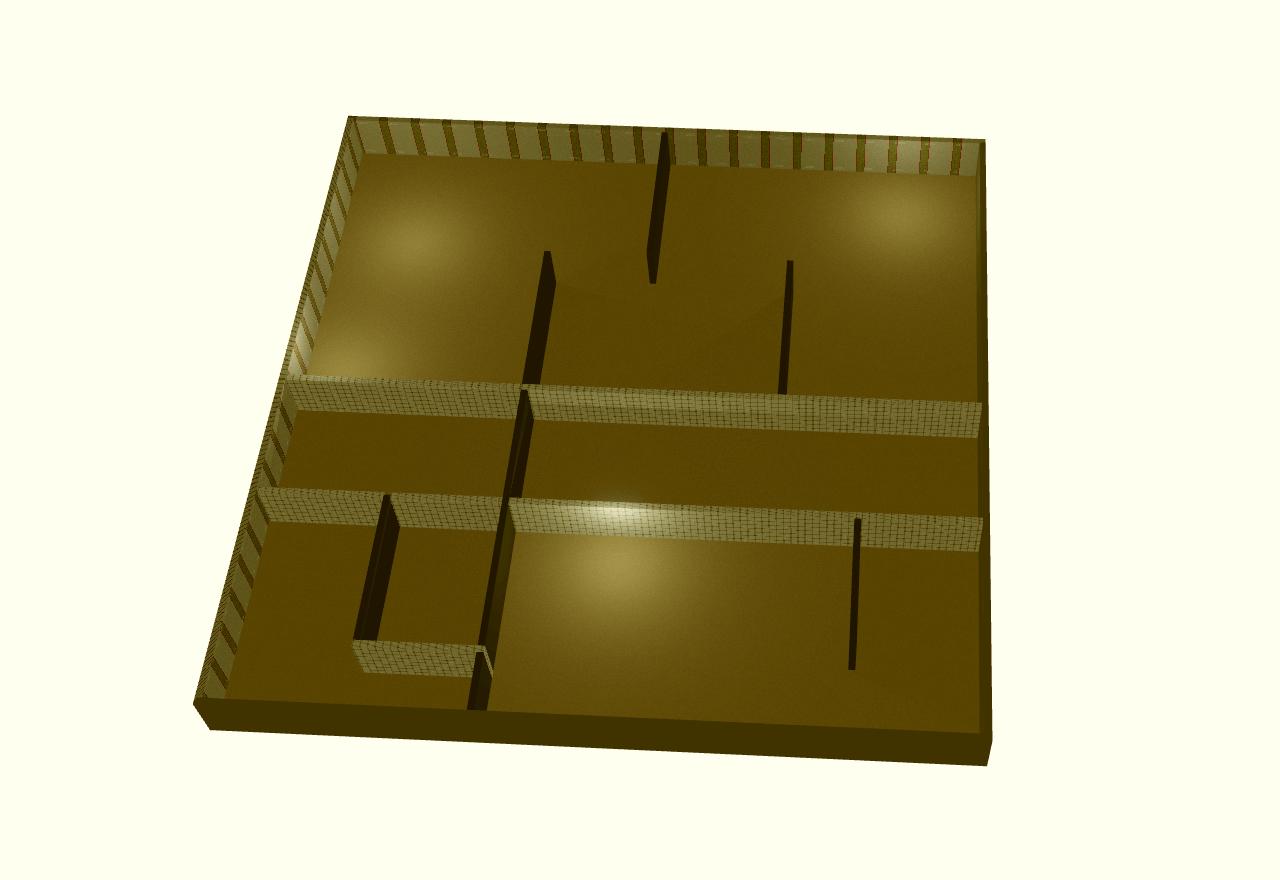

This is how my room looks with all the MovingWalls up:

But of course, we don’t need all of them all the time. This is where my sketch comes in handy, so it’s easy for me to set conditions:

export default function MovingWalls({ gameState })
{
    return <>
         {/*GOING  FROM LEFT TO RIGHT, FROM Z=0 FURTHER AWAY*/}
        {gameState === 'A' && <WallVertical position={[-4.85, 0.75, 0.55]} length={2.56} />}
        {gameState !== 'B' && <WallVertical position={[1.65, 0.75, -3.0]} length={9.7} />}

        {gameState === 'D' && <WallHorizontal position={[-12.9, 0.75, -8]} length={5.5} />}
        {gameState === 'C' && <WallHorizontal position={[-7.425, 0.75, -8]} length={4.85} />}
        {(gameState === 'B' || gameState === 'C'  ) && <WallHorizontal position={[-1.6, 0.75, -8]} length={6.2} />}
        {gameState === 'C' && <WallHorizontal position={[13.1, 0.75, -8]} length={5.2} />}

        {gameState !== 'C' && <WallVertical position={[-4.85, 0.75, -10.95]} length={5.8} />}

        {gameState === 'C' && <WallHorizontal position={[-10.35, 0.75, -14]} length={10.7} />}
        {gameState !== 'C' && <WallHorizontal position={[13.35, 0.75, -14]} length={4.7} />}
    </>
}

Now I can check that my states are the same as my sketch:

After finetuning areas of switching the states, this is what I have if I put my game in a debug mode:

Here you can see states A -> B -> C -> D -> A -> B, meaning you can go on forever in circles…

…kinda like in Harry Potter!

Links

Okay cool. Another thing I want to add is links for my rooms / websites / demos of different shading languages. I want to place planes in my experience and check if the player is there, then we activate the link.

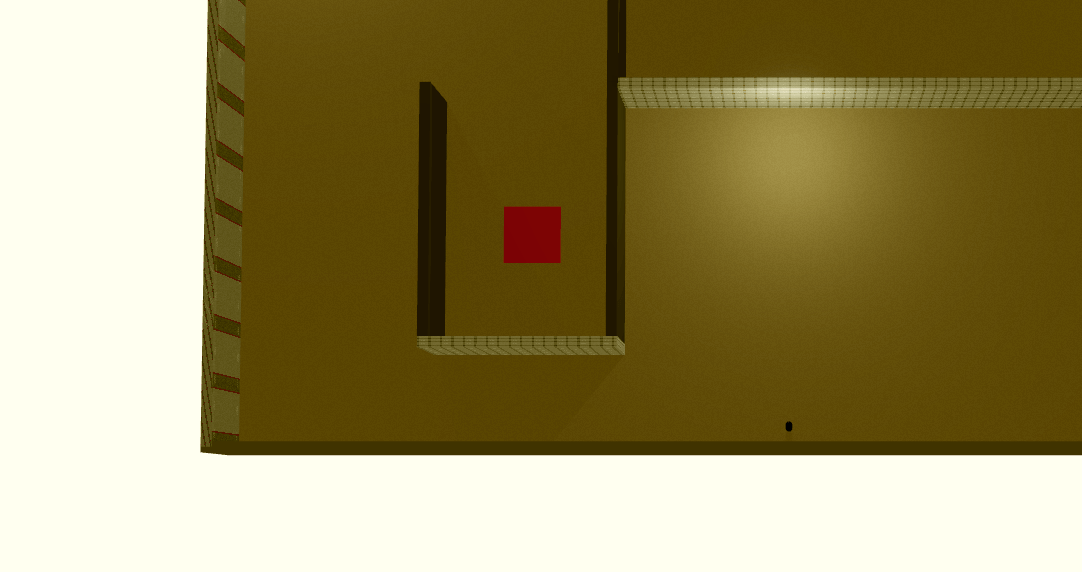

Here I place the spot for the link:

And then we keep track of our position and activate eventListener based on the position:

    const [isInLinkMemoriesSpot, setIsInLinkMemoriesSpot] = useState(false)

    const visitLinkMemories = () => {
        window.open('https://memories-jet-xi.vercel.app/', '_blank')
    }

    const checkLinkSpot = (position) => {
        //link spot is at x -7.2, z -4.0
        const inMemoriesSpot = position.x > -7.4 && position.x < -7.0 &&
                      position.z > -4.2 && position.z < -3.8

        setIsInLinkMemoriesSpot(inMemoriesSpot)
    }

    useEffect(() => {
        const handleKeyPress = (event) => {
            if (event.key === 'Enter' && isInLinkMemoriesSpot) {
                visitLinkMemories()
            }
        }

        window.addEventListener('keydown', handleKeyPress)
        return () => {
            window.removeEventListener('keydown', handleKeyPress)
        }
    }, [isInLinkMemoriesSpot])

and it works! I will make the spot look better, add some ui and hide debugging elements and corridor is finally ready=)
